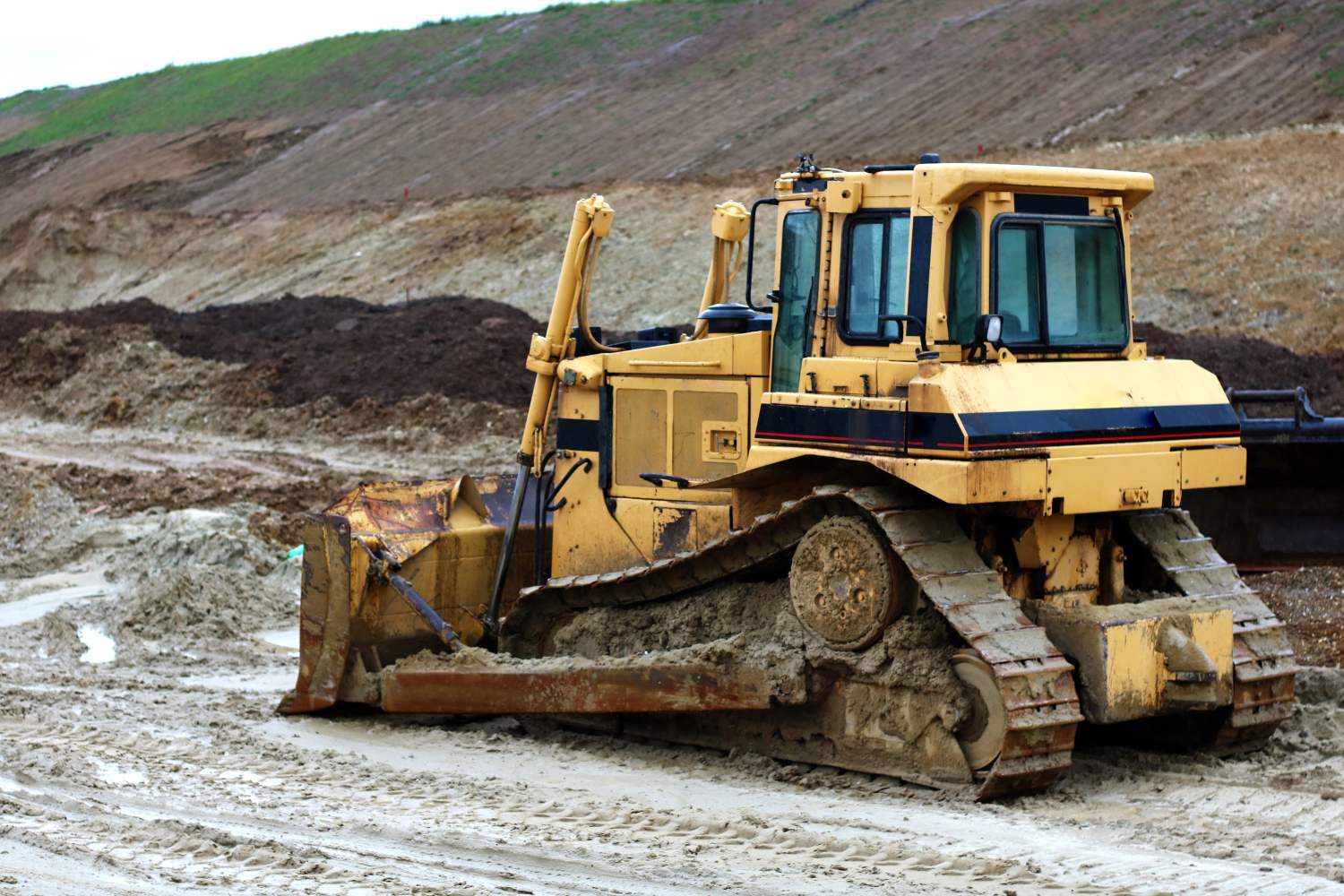

Track rollers and carrier rollers are components of the undercarriage system found on tracked vehicles and heavy equipment. They serve different functions and are positioned at different locations along the track assembly. Here's a breakdown of the differences between track rollers and carrier rollers:
1. Function:
Track Rollers: Track rollers, also known as bottom rollers or support rollers, play a crucial role in supporting the weight of the machine and maintaining the tension and alignment of the track. They are typically located at the lower part of the undercarriage, directly in contact with the ground. Track rollers evenly distribute the weight of the equipment across the tracks and help it move smoothly over uneven terrain.
Carrier Rollers: Carrier rollers, also known as top rollers or upper rollers, have a different function. They are positioned higher in the undercarriage system, typically near the top of the track frame, and they don't make direct contact with the ground. Carrier rollers primarily guide the track, prevent excessive slack, and ensure proper track tension. They also help keep the track centered on the sprocket and maintain alignment.
2. Location:
Track Rollers: These are located at the bottom of the undercarriage, directly in contact with the ground or terrain. They are evenly spaced along the length of the track assembly.
Carrier Rollers: Carrier rollers are positioned higher up in the undercarriage, closer to the frame of the machine. They are usually positioned in the front or rear of the undercarriage frame and are less numerous than track rollers.
3. Design:
Track Rollers: Track rollers have a cylindrical or barrel-shaped design with a rolling surface that makes contact with the ground. They are built to withstand the wear and abrasion caused by direct contact with the terrain.
Carrier Rollers: Carrier rollers typically have a flatter, wheel-like design with a larger diameter compared to track rollers. They have a smoother surface and are designed to reduce wear on the top of the track and guide it smoothly.
4. Wear and Maintenance:
Track Rollers: Due to their direct contact with the ground, track rollers are more susceptible to wear and may require more frequent maintenance or replacement.
Carrier Rollers: Carrier rollers are subject to less wear since they don't make direct contact with the ground. However, they still play a critical role in the overall performance of the undercarriage and should be inspected regularly.
In summary, track rollers and carrier rollers are essential components of the undercarriage system in tracked vehicles and heavy equipment, but they serve distinct functions. Track rollers support the weight of the machine and maintain track tension, while carrier rollers guide the track and help maintain alignment. Both are important for the overall performance and longevity of the undercarriage.
